Basic question

[Jamie1972]

How does the pull start rope "loop" through the handle on a Tecumseh engine.?
I know.....Duh..right?



[Havasu Dave]

How does the pull start rope "loop" through the handle on a Tecumseh engine.?
I know.....Duh..right?

From the bottom, through the rubber, then that piece of metal, pull it out for knot:

Make loop, slide bitter end in once, around, then again. Cinch it up. Use a lighter and crimp the end.



[Jamie1972]

So the knot will actually end up inside the metal peice once it has been melted some, then push back into the rubber handle without any extra bulge on the rubber...?



[markus]

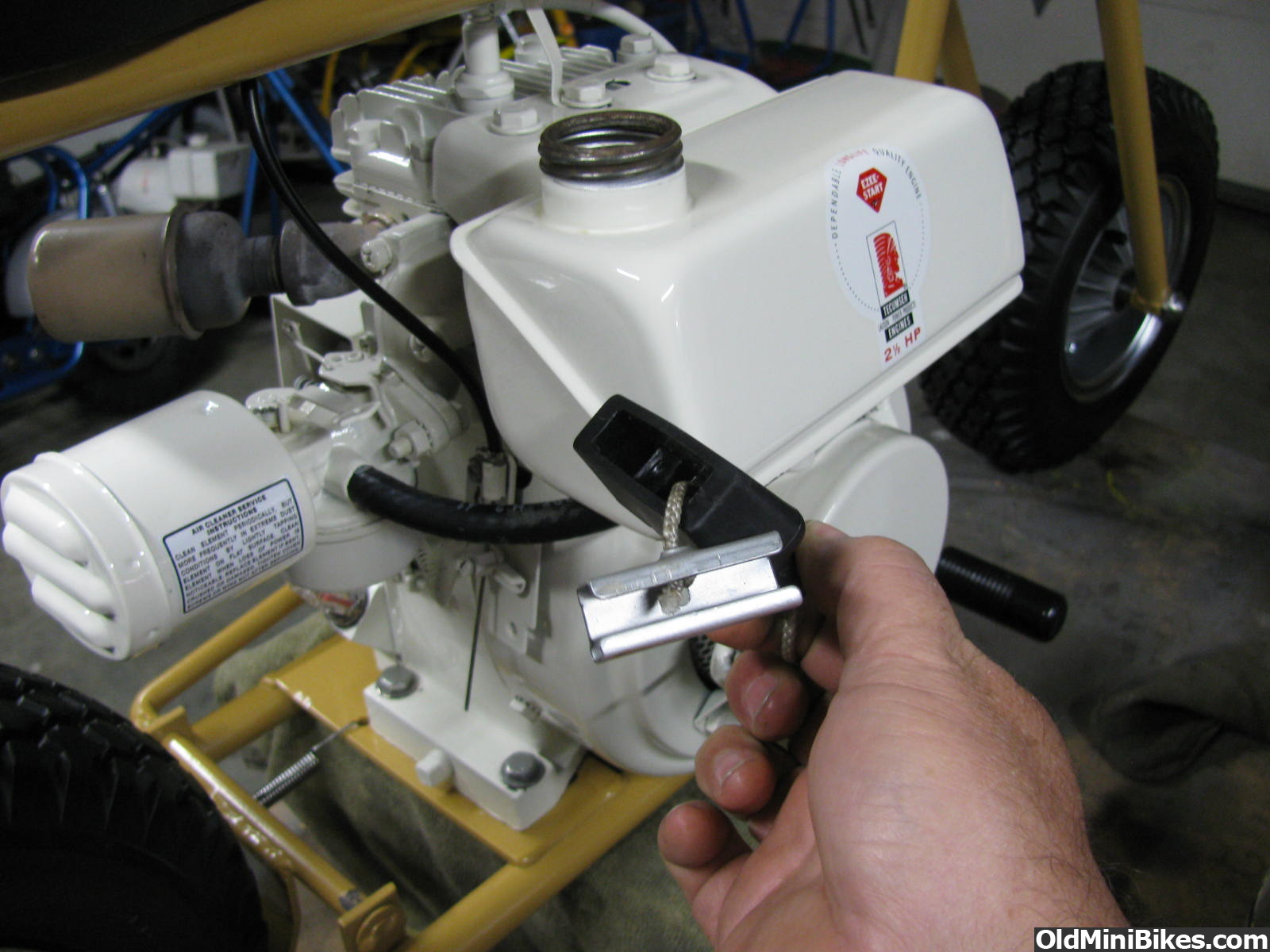

Just put a new one on a bike yesterday:



[Jamie1972]

Cool. thanks for the pic.:thumbsup: thats how i pictured it..But was not 100%

Theres that "infamous" 2 1/2 hp side tank tecumseh. Love em!
I will be contacting you when i get to my chopper restore! :thumbsup:



[oldfatguy]

Just put a new one on a bike yesterday:

wow that engine looks good, I have one sitting on the shelf that needs to be cleaned up.



[Jamie1972]

Got it.
Thanks.
