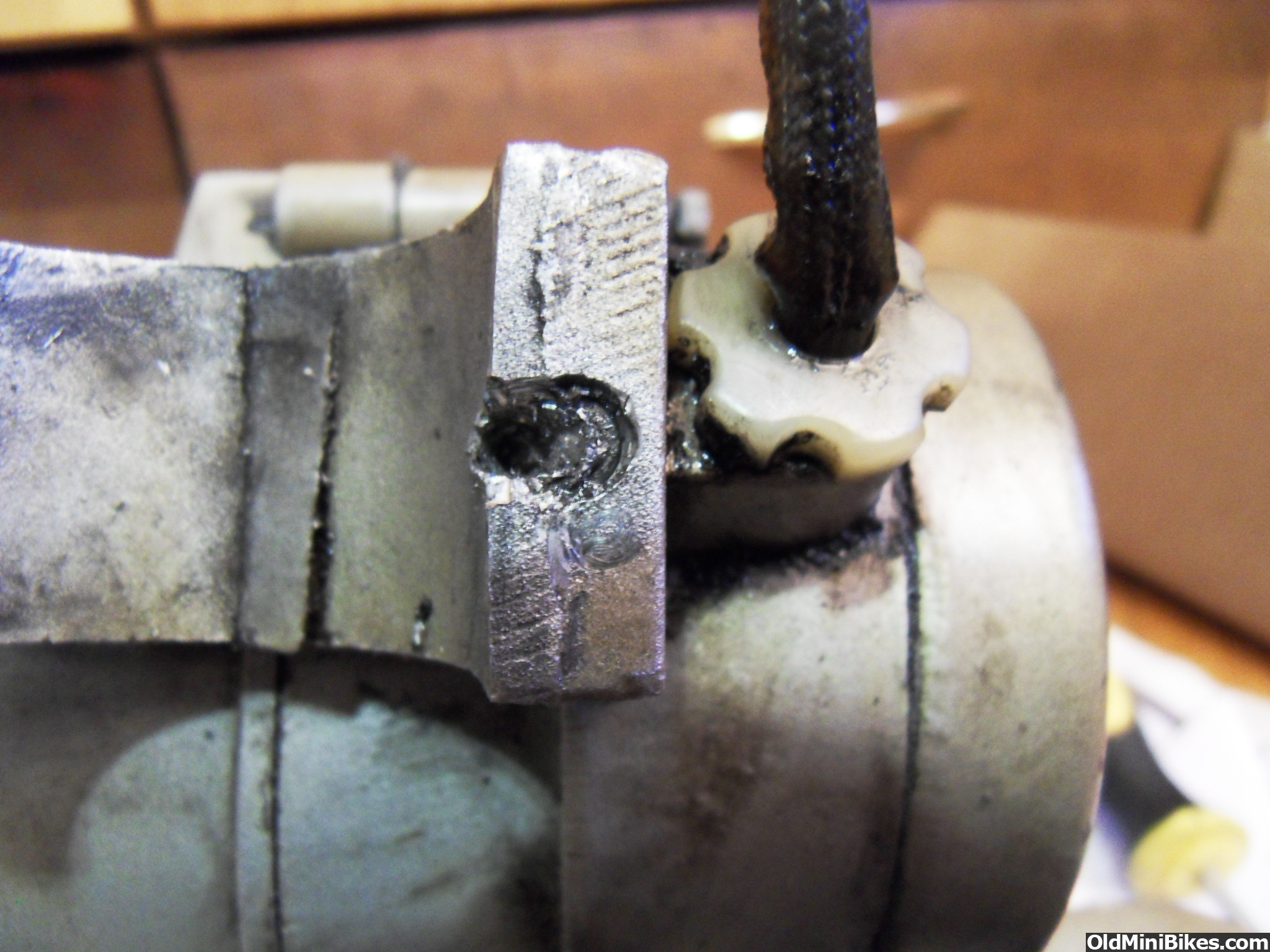

Ouch looks like the drill drifted of Centre.
You could try lots of penatrating fluid and a Prick punch with a small hammer. Try and tap it counter clockwise on the outside near the thread.
You could also try to brase/weld a rod to the stud and then turn it out.
Not sure of your back ground or skill, but if you feel out of depth take it to a shop that does helicoils or thread repair. To fix what you got is a real mission
Good luck:thumbsup:
You could try lots of penatrating fluid and a Prick punch with a small hammer. Try and tap it counter clockwise on the outside near the thread.
You could also try to brase/weld a rod to the stud and then turn it out.
Not sure of your back ground or skill, but if you feel out of depth take it to a shop that does helicoils or thread repair. To fix what you got is a real mission
Good luck:thumbsup:
WOW that's a pickle.......you might be able to center punch the bolt then drill the center.
Carefully set the center punch in the center of the bolt and make a dimple then use a small drill to make a pilot hole then step up the drill size and drill again then finish drilling the proper size for your easy out.
lots of penetrating oil or heat and melt some wax in around the threads and let it cool a bit before trying the easy out.
carefully center punch bolt
drill drill drill
penetrant or heat+wax(let cool a bit if using wax)
then try easy out
Carefully set the center punch in the center of the bolt and make a dimple then use a small drill to make a pilot hole then step up the drill size and drill again then finish drilling the proper size for your easy out.
lots of penetrating oil or heat and melt some wax in around the threads and let it cool a bit before trying the easy out.
carefully center punch bolt
drill drill drill
penetrant or heat+wax(let cool a bit if using wax)
then try easy out
What I would do is drill out the stud and then use metal set to fill the hole then drill and tap it.
METAL SET A4 ALUMINUM FILLED EPOXY ADHESIVE from Aircraft Spruce
METAL SET A4 ALUMINUM FILLED EPOXY ADHESIVE from Aircraft Spruce

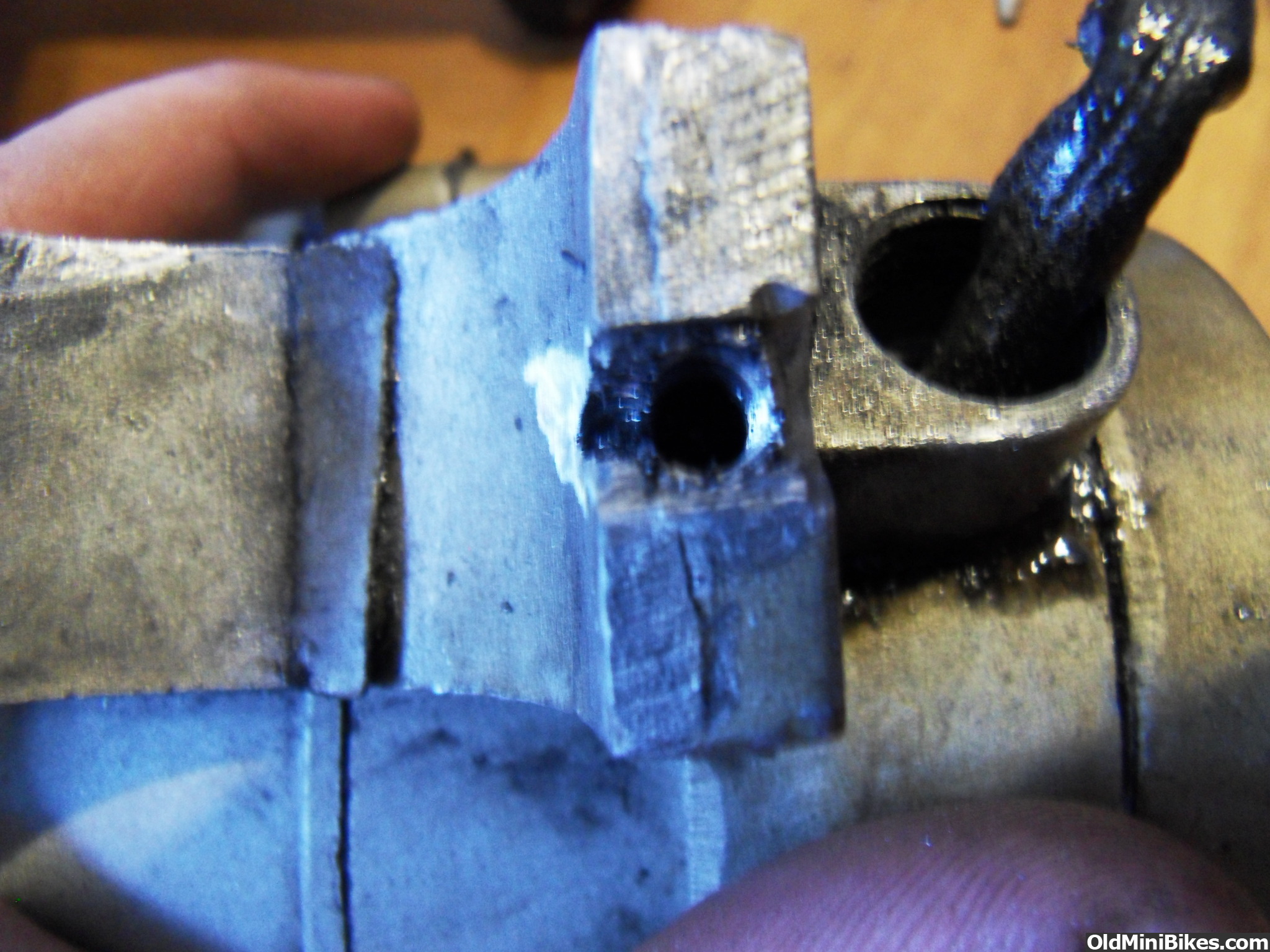

Talbotti, Mipowdercoater is correct. Drilling out the stud and filling with epoxy will probably be your best bet. Because the top of the stud is no longer flat I don't see you having much success with drilling out the stud. However, you might want to try this. Take a piece of flat steel strip at least 3/8" thick (1/2" would be better) and drill a hole in it the same diameter as your stud. Clamp the steel strip TIGHTLY so that the hole in the strip is directly over what's left of the stud. Then, working SLOWLY AND I MEAN SLOWLY proceed to drill out the stud. You will probably ruin several bits in the process but you may be able to eventually remove the stud. This is a good trick to remember and use anytime you want to drill a hole in anything and the location of the hole has to be exact. Good luck. Ogy

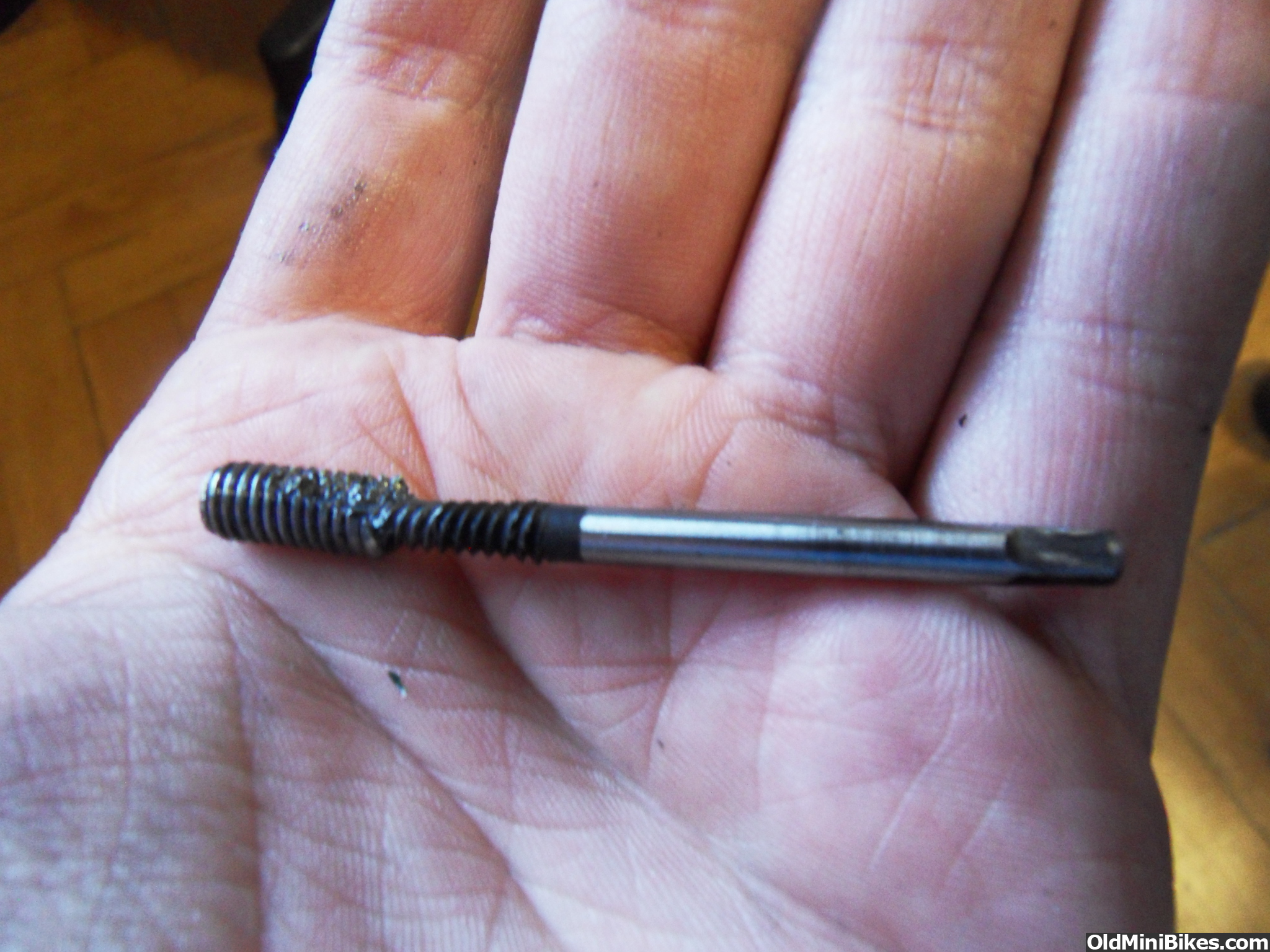

imp: hey i got that little bastard out. Filed the studs remainings flat and started to drill with very small bit then did 2.8mm hole, gave her little oil and heat then tried the ezout and it came. What now, at the bottom there are some good threads so should i put new stud in with epoxy or thread lockLooking good Talbotti. Depending on how hot this area of the motor gets I'd install the new stud into the remaining threads at the bottom of the hole and then use a heat resistant epoxy to completely fill the rest of the hole. Be sure to clean and degrease the hole thoroughly and use a very light film of oil or vaseline on the new stud or it will bond to the epoxy and you will never be able to remove it again. Ogy
nice i would have tried to dremel a slot and unscrew it with an impact driver. then epoxy the new stud right in there. no need to remove it in the future really. You didnt show the other side of your clamp but maybe if that didnt work just drill and tap for two more studs on either side of the old one
