Converting Walbrow non adjustable carb to adjustable

#1

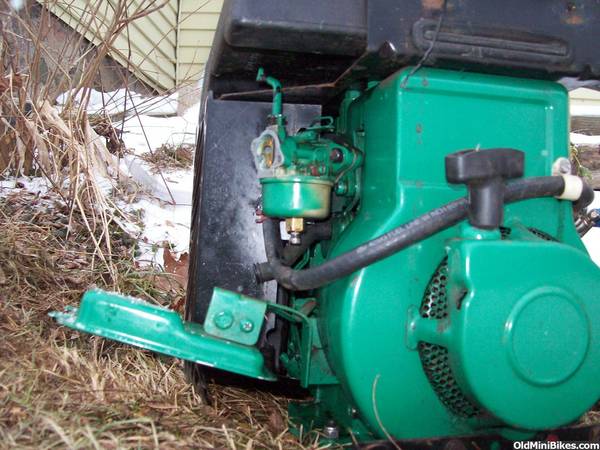

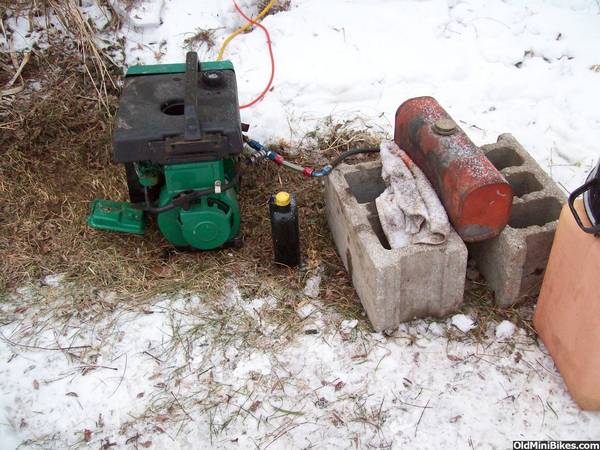

I have this little generator with the Walbrow bowl carb on a 3.5 horse flatty.. It uses a nice aluminum intake manifold.. Problem is the main jet is not adjustable, and if I want to use the generator, I gotta wire the choke like EXACTLY 23 / 59 shut, or it won't run..

The power went out, and I decided to fix my carb...

after digging some, I found a jet that was almost perfect..

It needs to be very short, as it will crash into the emulsion tubes in the carb body after like 4 or 5 threads.. It needs to be short, and fed from the bottom sides.. Like a tecumseh HS jet only shorter..


This is a pic of the inside of the carb before, all the parts laid out, the adjustable jet I plan to use, and a toothpick broken off into the original fixed pre-sized jet, I plan to use to cork the original jet off..


#2
To convert the carb.. I will have to plug off the original jet.. This is just a VERY VERY small threaded brass tube.. about like a hollow pencil lead, 3/8 inch long, that screws into the main support tube everything is built off from.... To plug it off, I shoved a toothpick into the hole and broke it off flush...

To FEED my new jet, there needs to be a notch cut into the bottom of the post that the bowl tightens down to.. Cutting a a notch, lets fuel flow into the tube, between the tube and the surface of the bowl..

This pic shows how the fuel will enter and leave the new jet..


#3
This pic shows my new jet screwed in as far as it can go, and the notch I cut with a hacksaw blade.. The blue highlight is the area filled with fuel between the bowl and carb body..

Looks like I will have to at least DOUBLE the gaskets between the jet and bowl, or the bowl will be loose..
