Head talk

[Newoldstock]

I finaly picked this up today.

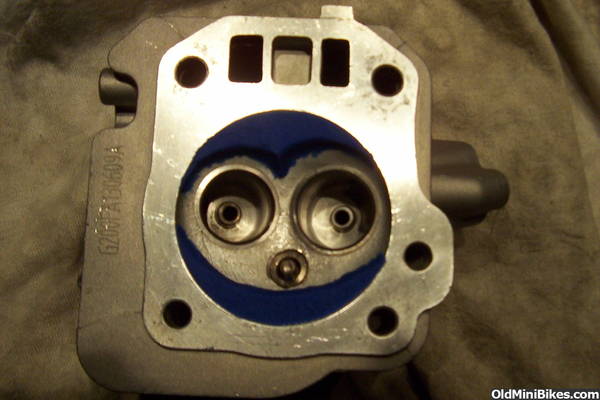

I thought you fellows might like to see what it looked like welded up.



[rmm727]

Time to fire up the mill.



[Newoldstock]

Time to fire up the mill.

Not any time soon.
More welding and milling work to be done.



[rmm727]

Meant Milling Machine



[Newoldstock]

Meant Milling Machine

Belt sander lol.
Don't laugh might happen...



[FirePowerMinis]

Belt sander lol.
Don't laugh might happen...

Haaa. They're just fine for roughing in.

Weld the plug hole, drill for small on, closer to the new seats?



[Newoldstock]

Haaa. They're just fine for roughing in.

Weld the plug hole, drill for small on, closer to the new seats?

No I am going to braze in the bowls like the test heads.
But first I need to fidn some better rods.

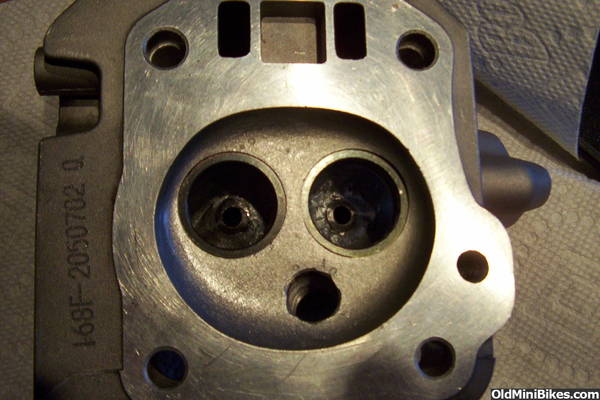

Remember this...



[Dragbikemini]

nice beads. you want small chamber? so you use a larger chamber to start and you can lay beads out. Easier than to start with a 14cc?



[Newoldstock]

nice beads. you want small chamber? so you use a larger chamber to start and you can lay beads out. Easier than to start with a 14cc?

Suprise!!!!
There is always a reason behind every picture.

And stuff today.



[Glaze]

holy compression!



[Newoldstock]

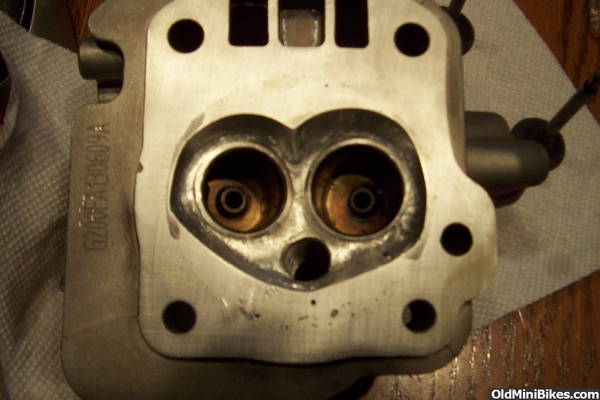

A work in progress



[ole4]

How did you shape the relief's around the valves? Sure looks a lot better than mine I did with die grinder bits and drum rolls.



[firemarshal71]

A work in progress

-quite an amazing work in progress! I wasn't sure where you were headed with this at first but that is a real nice job.



[Newoldstock]

How did you shape the relief's around the valves? Sure looks a lot better than mine I did with die grinder bits and drum rolls.

Dremel and elbo grease.
Thats very early BTW, just a rough cut.
Its a little cleaner now.
Having a cup of tea now and heading to the shop to do a little more.
Might post some pictures later tonight.



[massacre]

That is beyond impressive, good for you!



[Newoldstock]

Not done more work before I polish and turn my attention to the ports valve job.



[Stangrcr1]

Starting to look like some heart shaped chambers I remember from high performance small block Chev and Ford engines...



[Newoldstock]

Starting to look like some heart shaped chambers I remember from high performance small block Chev and Ford engines...

Looks more like ET saying " HOME ".....

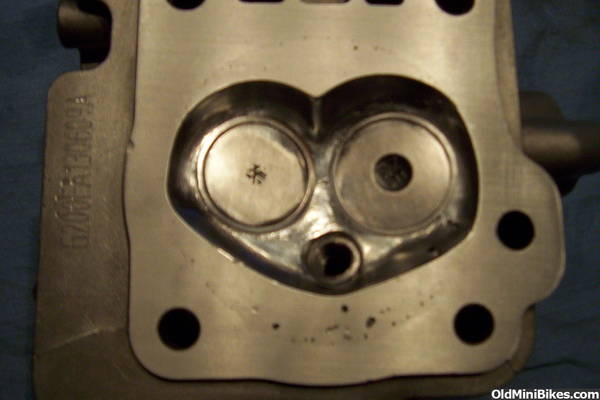

That is more or less the final shape of it
Started work on the ports now.



[Camjamsdad]

Estimate on your goal for the compression ratio? If that makes sense.



[Newoldstock]

Estimate on your goal for the compression ratio? If that makes sense.

I don't know yet.

As it sits by my calculations it has about 4cc of aluminum added.
IU would like to get that down to around 16cc for around 11:1 compression

I think this is the final product less the valve and port work yet to come.
