How to: Making a CAT Chain Guide

[ScooterBoy]

Well I saw Jeff's "How to" thread on the Mac header and thought it was a really cool thread. I'm in the process of making some more of those little CAT chain guides so I thought I'd go ahead and post that process as well. None of that fancy EDM stuff....but still kind of neat. Just follow these 4 simple steps......

Step 1: Cut the ABS plastic into little blocks.

Step 2: Cut a dove-tail on the block so that it can be held in the next step.

Tomorrow or Monday we'll start step 3 and post a few more pictures...:thumbsup:



[TANKSAREUS]

Talk about leaving a guy hanging - its like watching how its made one frame a day:laugh: I'm getting withdrawl symtoms already.

Really cool work:thumbsup:



[ScooterBoy]

Talk about leaving a guy hanging - its like watching how its made one frame a day:laugh: I'm getting withdrawl symtoms already.

Really cool work:thumbsup:

It'll be worth the wait...Step 3 is pretty cool. I'll try to get a video to load.:thumbsup:



[derekbmn]

Thanks Mark....Really great to have you back :thumbsup:



[Jeff Clark]

That's fancy stuff there:thumbsup: Looks Good! you CNC guys make us riggers look bad. jar



[ScooterBoy]

OK.... Here we go...

This is a video of Step 3 :

Making a CAT chain guide - YouTube



[ScooterBoy]

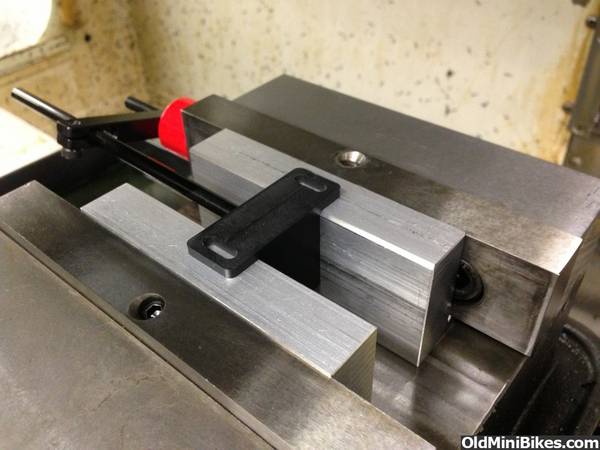

Step 4 is simple.... back in he vise and remove that dovetail that we put on in step 2.

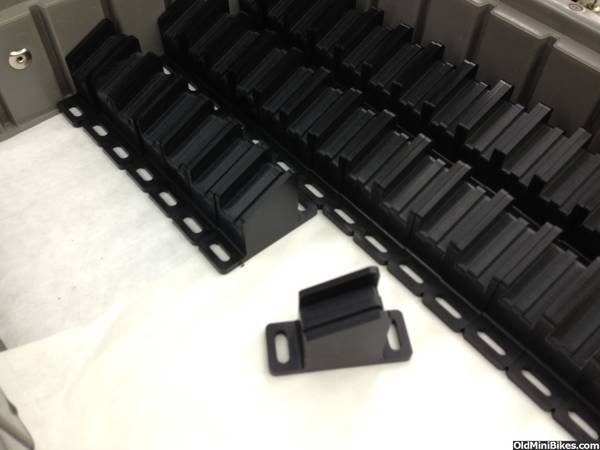

Here's a few in the tray.......



[Square_Chopper]

Very cool Mark! :thumbsup:



[derekbmn]

Awesome.....and good timing. I neeeeed some :smile:



[buckeye]

It is so nice to see you back.:thumbsup:
Awesome stuff right here.:thumbsup:



[jeep2003]

are you sure thats thow they did it in the 60s? :laugh:



[Paticus]

Is this to keep the chain from popping off? where does it go?



[trailhopper]

are you sure thats thow they did it in the 60s? :laugh:

Monday morning at the Muskin factory. :thumbsup:



[derekbmn]

Is this to keep the chain from popping off? where does it go?

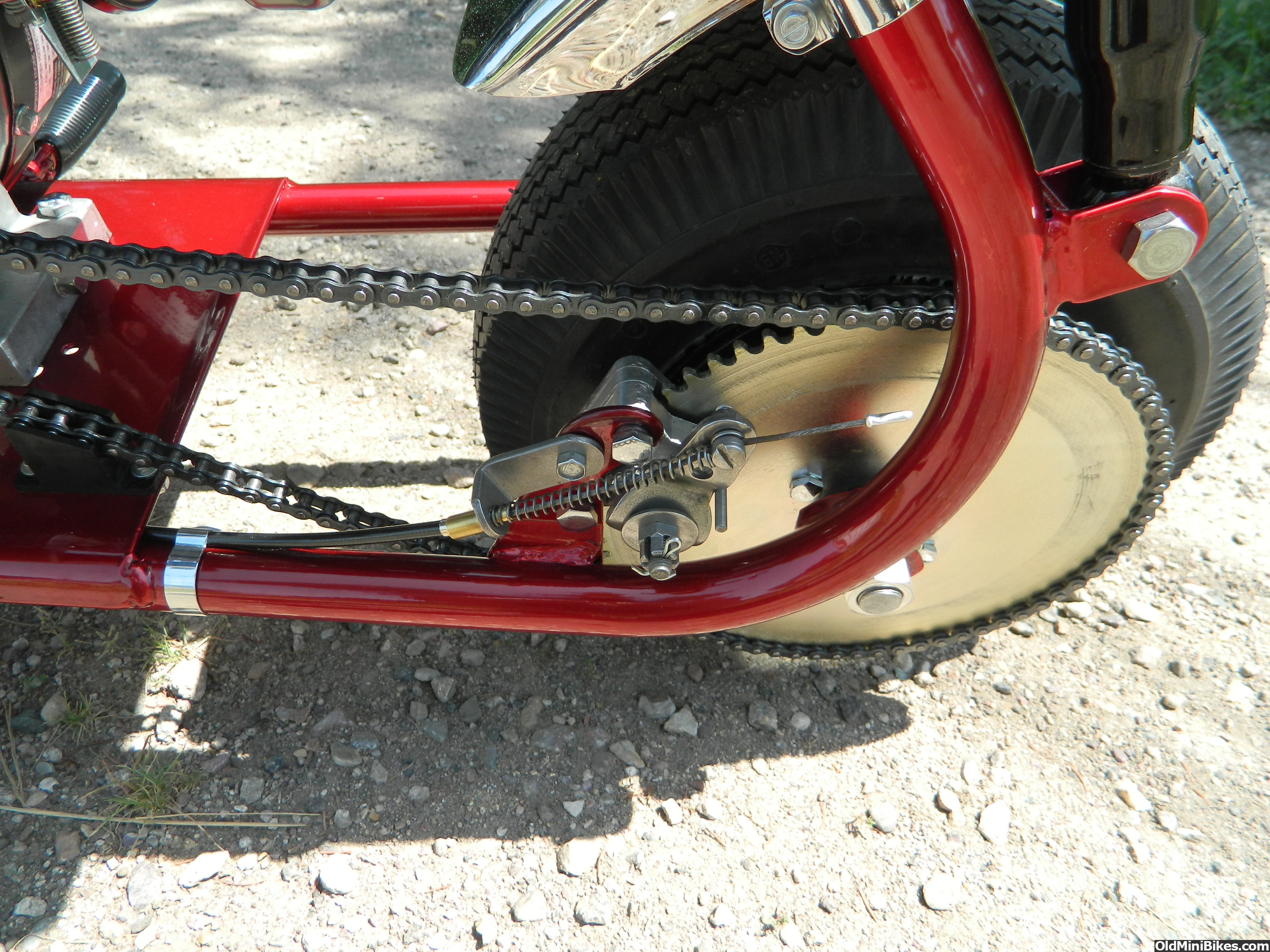

Look to the left.



[ScooterBoy]

Thanks for the picture Derek :thumbsup:



[buckeye]

Here's a close up.:thumbsup:



[butch63]

nice work. to bad i'm the guy with the pocket knife:doah:



[bayareaburrito]

That is one impressive machine!! Only need to make 1 billion more HPE Muskin chain guides and the machine will be paid off.. :laugh:
All kidding aside Scoot as always fantastic high quality craftsmanship. :thumbsup:
